What is the maximum rotor size for flat mount gravel brakes?

Standard flat mount is designed for 140mm and 160mm rotors. 160mm is the maximum direct-mount size on most flat mount frames. 180mm rotors can be used on flat mount front forks via a flat mount to flat mount +20mm adapter (e.g., Shimano SM-MA-F180D/D2). Rear flat mount is almost universally capped at 160mm without custom adapters.

Is post mount still used on gravel bikes in 2026?

Very rarely on new frames. Post mount (IS mount) is still found on some alloy adventure frames, older frames, and occasionally on fork lowers where additional caliper adjustability is needed. All premium carbon gravel frames in 2026 use flat mount as standard. Post mount allows larger rotors more easily via IS adapters, which is why it persists in some MTB applications.

Can I run a 180mm rotor on a flat mount gravel fork?

Yes, using a flat mount to flat mount +20mm offset adapter (from Shimano, TRP, or third-party). Most fork manufacturers specify whether their flat mount tabs are machined to accept the +20mm adapter — check the fork spec sheet. Running a 180mm rotor provides more braking power and better heat dissipation for steep descents or loaded bikepacking rides.

What caliper brands work with flat mount gravel frames?

All major gravel disc brake calipers use flat mount as standard in 2026: Shimano GRX, SRAM Force/Rival/Apex Level, TRP Spyre and Hylex, Paul Components, Hope RX4+, and Magura MT5 (via adapter). Flat mount has a universal 2-bolt interface — compatibility is near-universal between frame brands and caliper brands.

Does rotor size affect gravel bike handling?

Larger rotors (160mm vs 140mm) provide more braking power and better heat management — critical on long descents and for loaded bikepacking. They add a small amount of rotational weight (typically 40-80g per rotor for road to 160mm upgrade). For most gravel riding, 160mm front and 140mm rear is the ideal balance. Some riders run 180mm front for alpine or heavily loaded riding.

Flat Mount vs Post Mount Brakes on Gravel: Rotor Size Limits

Deep dive: CrankSmith Brake Mount Standards Guide • Brake Mount Reference

Every premium gravel frame in 2026 ships with flat mount disc brake tabs. It's the standard. But flat mount has rotor size limitations that most riders don't discover until they try to upgrade to 180mm front rotors and realize their frame or fork wasn't machined for the adapter. Here's what you need to know.

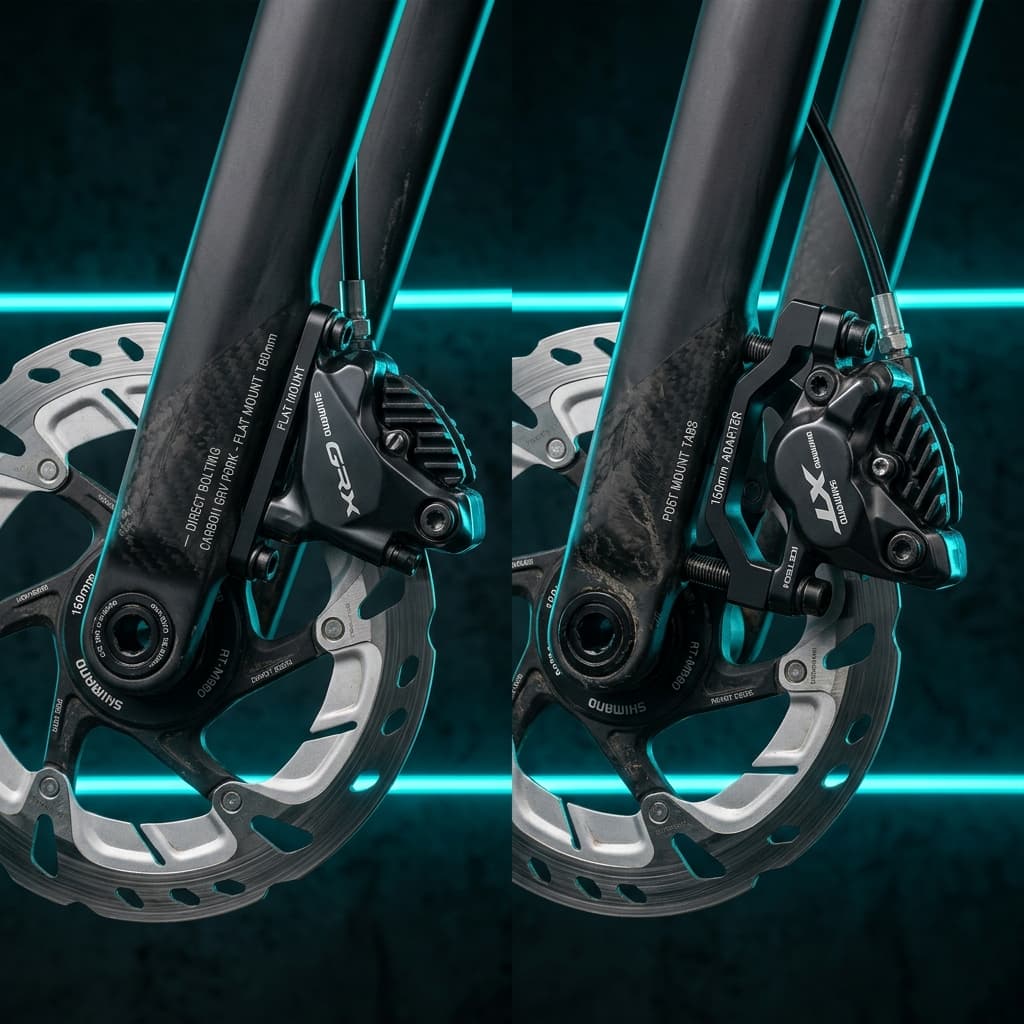

Flat Mount vs Post Mount: The Core Difference

Flat Mount

Two M6 bolts directly into frame/fork
Caliper sits flush and low profile
140mm and 160mm direct mount
180mm via +20mm adapter (if frame allows)
Lighter, cleaner aesthetics
Standard on all premium gravel 2026

Post Mount (IS Mount)

Two M6 bolts through frame tabs, caliper slides
Adjustable position for alignment
140mm, 160mm, 180mm, 203mm via IS adapters
Heavier, less aerodynamic
Found on alloy adventure frames, MTB
Rare on new gravel frames

The Rotor Size Reality

Flat mount is designed for 140mm and 160mm rotors as direct mounts. To run 180mm, you need a +20mm offset flat mount adapter. These adapters require specific machining on the frame's or fork's flat mount tabs — not all frames and forks have this. Check your manufacturer's spec sheet for whether the “FM+20mm adapter compatible” language appears.

Rotor Size by Mount Type

Mount	140mm	160mm	180mm	203mm
Flat Mount (front)	Direct	Direct	+20mm adapter*	No
Flat Mount (rear)	Direct	Direct	No	No
Post Mount (IS)	IS adapters	IS adapters	IS adapters	IS adapters

*Flat mount to flat mount +20mm adapter (e.g., Shimano SM-MA-F180D/D2). Frame/fork must be machined to accept it.

Which Rotor Size for Gravel?

For most gravel riding, 160mm front / 140mm or 160mm rear is the ideal combination. 160mm front provides ample stopping power for any gradient and weather condition. The rear rarely needs more than 140mm — rear braking contributes less to total stopping force, and a smaller rotor saves rotational weight where it matters less.

Consider upgrading to 180mm front if you:

Ride loaded bikepacking with 10kg+ cargo
Regularly descend sustained steep grades (alpine gravel, mountain passes)
Experience brake fade or boiling fluid during descents

For a compatibility check on your specific frame, fork, caliper, and rotor combination, see the CrankSmith Brake Mount Standards Guide.
