What internal rim width is best for 45mm gravel tires?

For 45mm gravel tires, 23-28mm internal rim width is the recommended range. A 25mm internal rim is the sweet spot — it provides proper sidewall support for a 45mm tire without making the profile excessively wide. A 28mm internal rim will inflate the tire slightly wider and lower, increasing contact patch and volume.

Does internal rim width affect tire pressure?

Indirectly. Wider internal rims make tires inflate wider and lower (shorter tire height for the same tire width). This lower-profile shape means the tire can generally run slightly lower pressure while maintaining sidewall support. Some manufacturers recommend 1-2 PSI lower target pressure for tires mounted on rims at the wider end of their ETRTO range.

What is the maximum tire width for a 25mm internal rim?

Per ETRTO 2021 guidelines, a 25mm internal rim is compatible with tires from 42-62mm (622 BEAD, 700c). Practically, 25mm internal is ideal for 40-50mm tires. Going above 55mm on a 25mm internal rim is not recommended — sidewall support becomes inadequate and the tire may flex excessively under load.

Do hookless rims require different tire width limits?

Yes. Hookless (straight-wall) rims have more aggressive tire width requirements and stricter pressure limits. Most hookless gravel rims are rated for tires 40mm or wider and a maximum pressure of 72.5 PSI (5 bar). The wider minimum tire requirement exists because narrower tires at higher pressures can pop off a hookless bead under load. Always check your specific hookless rim manufacturer's tire compatibility list.

What is the difference between internal and external rim width?

Internal rim width is the measurement between the inner walls of the rim — this is what determines tire fit and inflation profile. External rim width is the overall width of the rim from outer wall to outer wall. External width affects aerodynamics and the rim's visual appearance. For tire compatibility, always reference internal rim width.

Gravel Rim Width Guide: 25mm vs 28mm vs 30mm Internal

Your tire's listed width is a nominal measurement made on a reference rim. Mount that same tire on a rim 5mm wider and it will inflate wider and lower. On a rim 5mm narrower, it inflates taller and narrower. Understanding this relationship is essential for optimizing your gravel setup — especially as rim widths continue to grow.

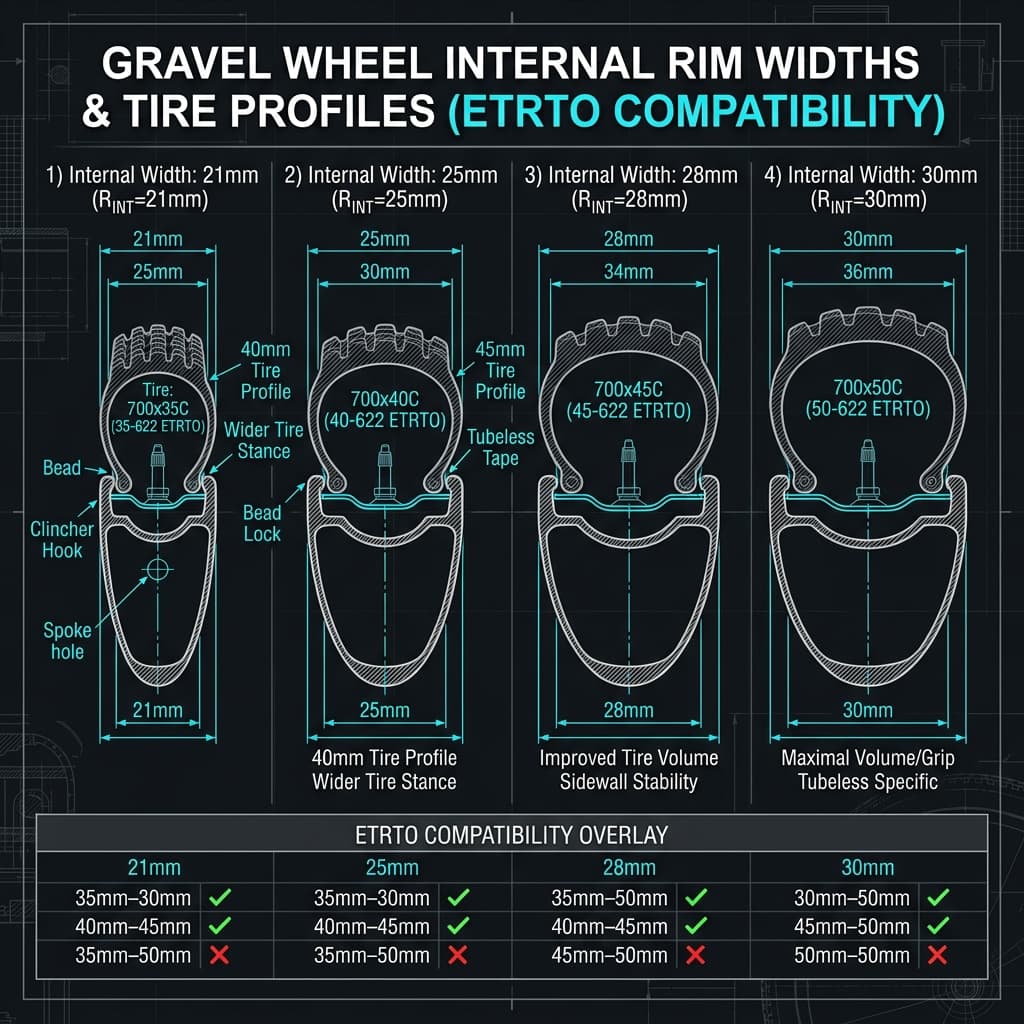

How Internal Width Changes Tire Profile

Every tire has an ETRTO-specified reference rim width for its nominal measurement. Mounting on a different width shifts the profile. As a general rule:

Every +2mm of internal rim width adds approximately +0.5-1mm of inflated tire width
Wider rims also make tires sit lower (shorter section height), increasing contact patch area
This lower, wider profile improves stability and cornering, but reduces ground clearance slightly

Actual Inflated Width: 45mm Tire Across Rim Widths

Internal Width	Inflated Width	Profile Note
21mm	~43mm	Tall, narrow profile. On the narrow edge of compatibility.
25mm	~45mm	Reference. Optimal support and cornering for 45mm tire.
28mm	~47-48mm	Wider contact patch, lower section height. Good grip.
30mm	~49-50mm	Low profile. Check frame clearance before mounting.

Values approximate. Actual width varies by tire brand and casing construction.

ETRTO Compatibility Matrix

The ETRTO (European Tyre and Rim Technical Organisation) publishes minimum and maximum rim width ranges for each tire size. For gravel:

Tire Width	Min Internal	Recommended	Max Internal
38-40mm	19mm	21-25mm	28mm
42-45mm	21mm	25-28mm	30mm
47-50mm	23mm	25-30mm	35mm
55-57mm (2.25")	25mm	28-35mm	40mm

Hookless Rims: Stricter Rules

Hookless (straight-wall) rims are increasingly common on gravel carbon wheelsets. The hookless bead shelf requires wider minimum tire widths and significantly lower pressure limits compared to traditional hooked rims. Key rules:

Most hookless gravel rims require 40mm minimum tire width
Maximum pressure typically 72.5 PSI (5 bar) — critical for tubeless setup
Some 30mm internal hookless rims may support lower tire widths — always check the rim manufacturer's specific compatibility list
Never mount a tire not on the hookless approved list for your specific rim

For the complete hookless safety and compatibility analysis, see the Hookless vs Hooked Gravel Wheels Safety Guide.

The Simple Recommendation

Running 40mm or smaller21-25mm internal

Running 42-47mm (most gravel riders)25-28mm internal (25mm is the sweet spot)

Running 48-55mm (big tire setup)28-30mm internal

Running 2.25" / 57mm30mm+ internal minimum
